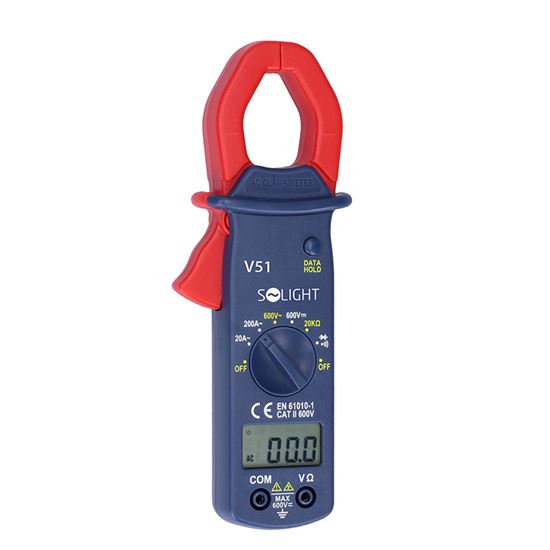

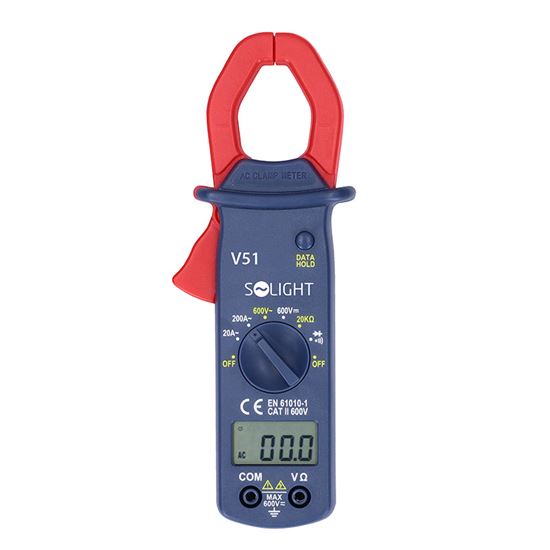

Clamp Meter
Digital multimeter with a maximum display of 2000 counts and low battery indication. Offers automatic shut-off after 15 minutes of inactivity and an audible warning before shutting down. Measures DC voltage (600V), AC voltage (True-RMS, 600V), AC current (20A - 200A), resistance (20kΩ), and provides continuity test with buzzer (trigger threshold <50Ω). Diode test, Data Hold function for saving the value on the display. Overload protection (250V DC/AC RMS). Power supply: 2x AAA batteries (included). Dimensions: 195 × 70 × 35 mm, weight: 172 g. Standard: EN61010-1, CAT II 600V.

• max. display count: 2000
• low battery indication: warning icon on the display
• automatic shut-off: after 15 minutes of inactivity (with an audible warning before shut-off)
• DC voltage: 0 - 600 V (±1.0% + 5 digits)
• AC voltage (True-RMS): 0 - 600 V (±1.2% + 8 digits)
• AC current: 20 A - 200 A (±2.5% + 10 digits)
• resistance: 0 - 20 kΩ (±1.5% + 5 digits)
• continuity test (buzzer): buzzer activation threshold < 50 Ω
• continuity test (buzzer): open circuit voltage 2.5 V
• diode test: open circuit voltage 1.0 V
• overload protection: 250 V DC/AC RMS
• data Hold function: allows holding the current value on the display

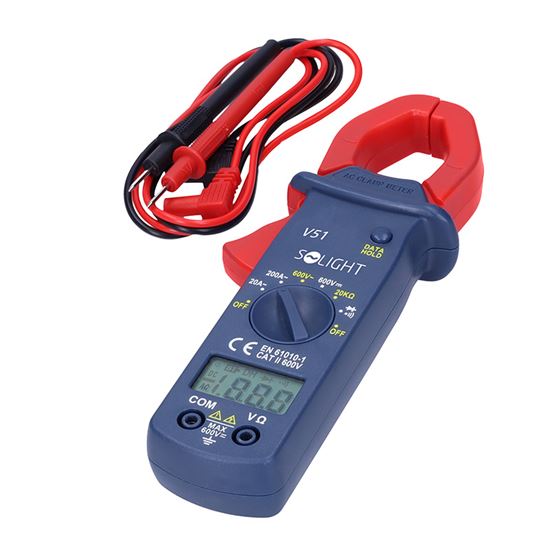

• package contents: measuring leads
• package contents: user manual
• operating temperature: 0 - 40 °C (< 80% RH)
• storage temperature: –10 - 50 °C (< 85% RH)
• battery type: 2 × 1.5 V AAA
• dimensions (H × W × D): 195 × 70 × 35 mm
• weight: approximately 172 g (including battery)
• standard: EN 61010-1, CAT II 600 V
