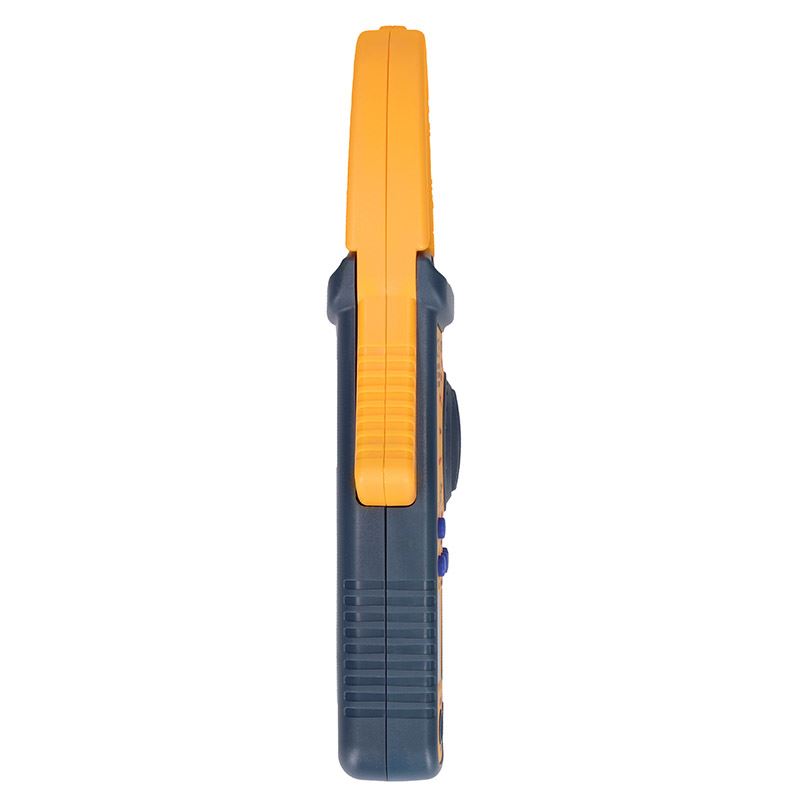

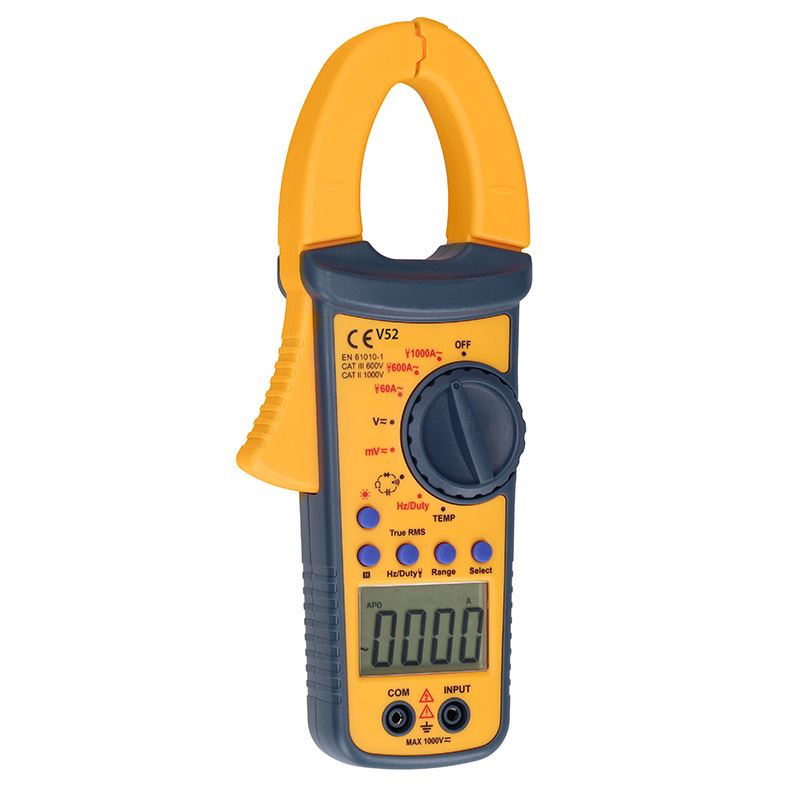

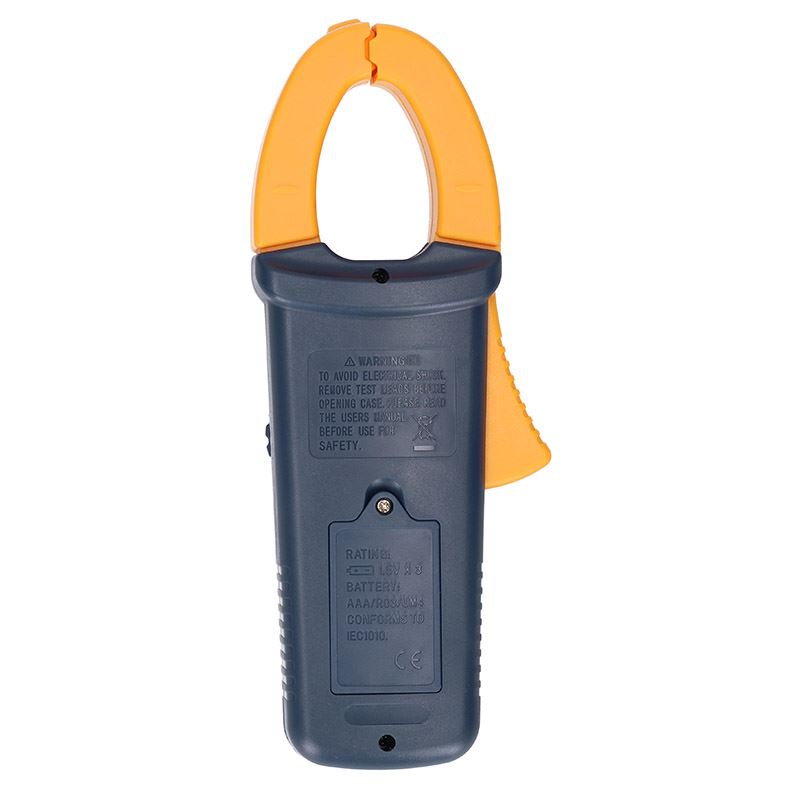

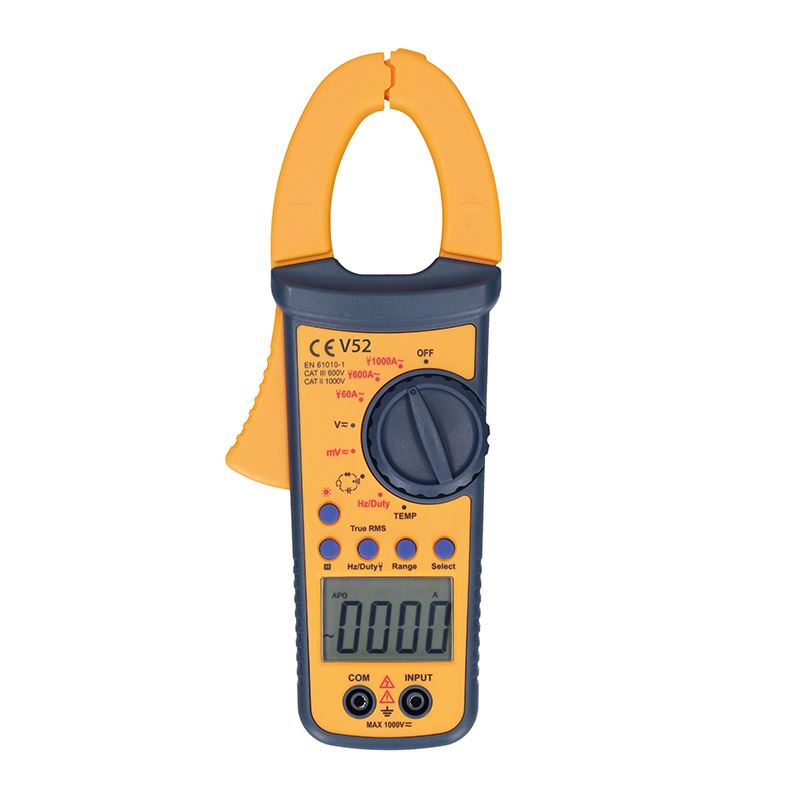

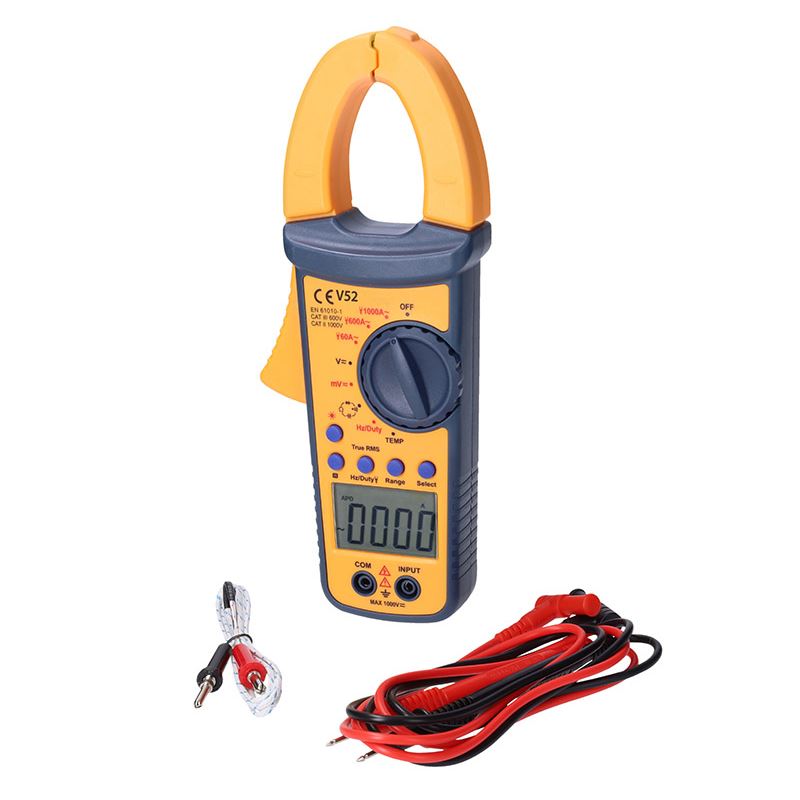

Professional Clamp Meter
Digital multimeter with a maximum display of 6000 counts and a backlit LCD screen (34 × 48 mm). Offers automatic or manual range selection and automatic shut-off after 15 minutes of inactivity. Measures DC voltage (0.1 mV – 1000 V), AC voltage (0.1 mV – 750 V, True-RMS), AC current (10 mA – 1000 A, True-RMS), resistance (0.1 Ω – 60 MΩ), capacitance (6 nF – 60 mF), and temperature (-40 °C – 1370 °C). Features data hold, indication of maximum and minimum values, frequency (0 Hz – 10 MHz), and duty cycle (0.01% – 99.9%). Diode test, continuity with buzzer, and clamp frequency measurement. Power supply: 3x AAA 1.5V batteries. Dimensions: 240 × 95 × 40 mm, weight: 342 g.

• maximum display count: 6000
• LCD: 34 × 48 mm
• range selection: automatic or manual
• automatic shut-off: after 15 minutes of inactivity

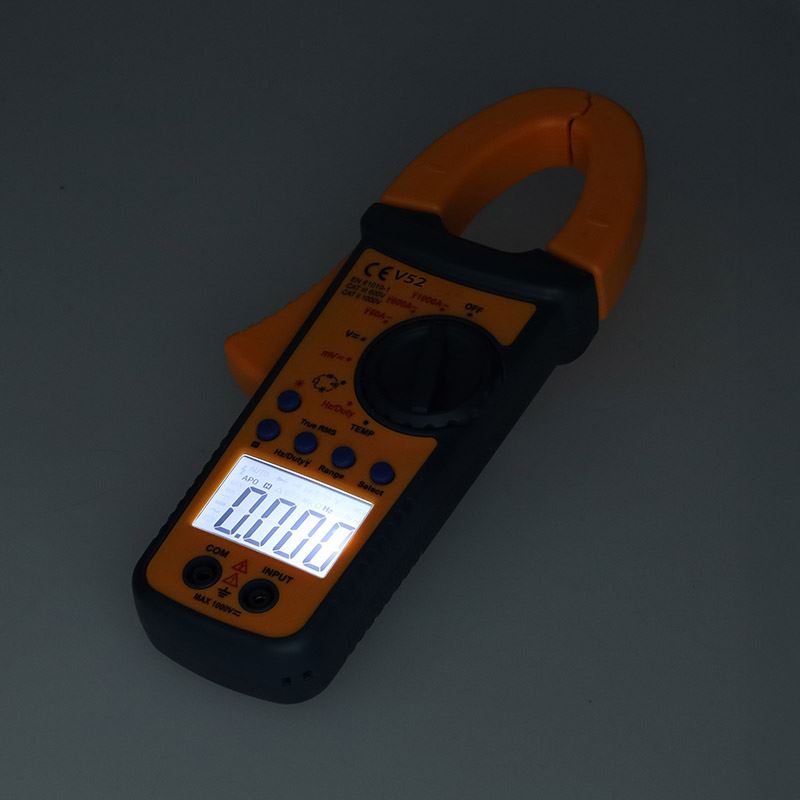

• display backlight: yes
• data hold: yes
• maximum and minimum value indication: yes
• DC voltage: 0.1 mV - 1000 V (±0.8 % + 3 - ±1.0 % + 5)
• AC voltage (True-RMS): 0.1 mV - 750 V (±1.2 % + 6 - ±1.2 % + 8)
• AC current (True-RMS): 10 mA - 1000 A (±2.5 % + 10)
• resistance: 0.1 Ω - 60 MΩ (±1.5 % + 5)
• capacitance: 6 nF - 60 mF (±8.0 % + 5)
• frequency: 0 Hz - 10 MHz (±1.0 % + 5)
• frequency via clamp (clamp mode): 50 Hz - 1 kHz (±1.5 % + 5)
• temperature: −40 °C - 1370 °C (−40 °F - 2000 °F) (±1.2 % + 4 - ±5.0 % + 4)
• duty cycle: 0.01 % - 99.9 % (±1 %)
• diode test – forward voltage: approximately 3.2 V
• continuity – buzzer threshold: < 30 Ω
• operating temperature: 0 °C - 40 °C, less than 80 % RH
• storage temperature: −10 °C - 50 °C, less than 85 % RH
• power supply: 3 × AAA 1.5 V batteries
• dimensions (H × W × D): 240 × 95 × 40 mm
• maximum jaw opening: 40 mm
• weight: approximately 342 g (with batteries)
