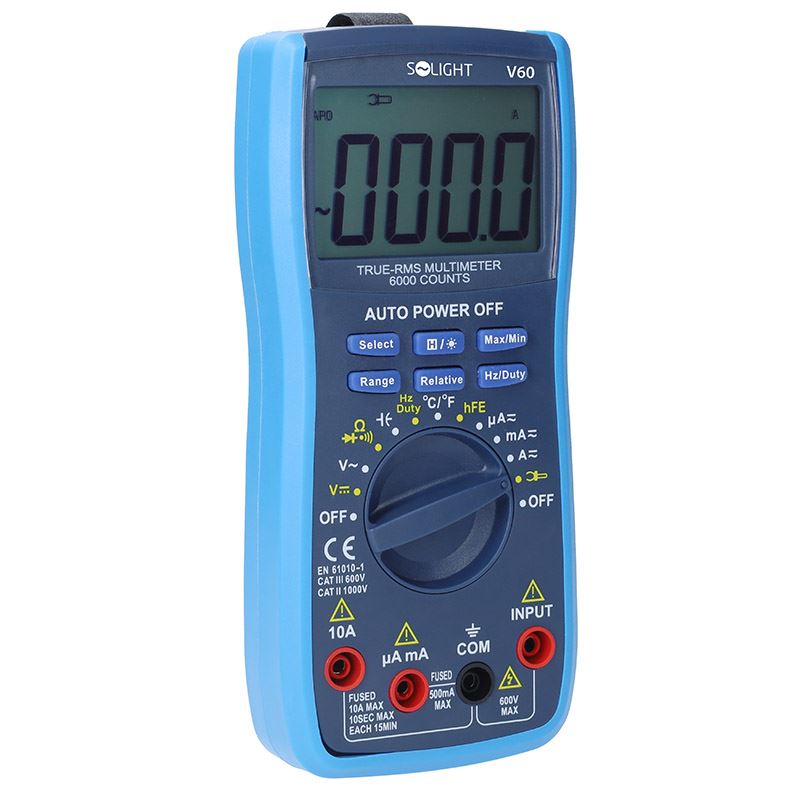

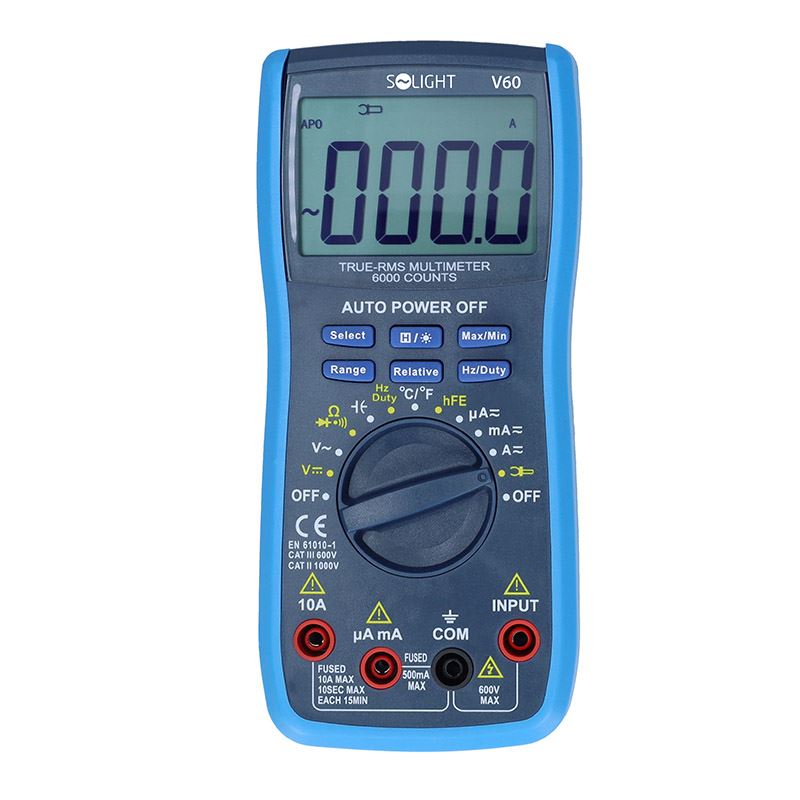

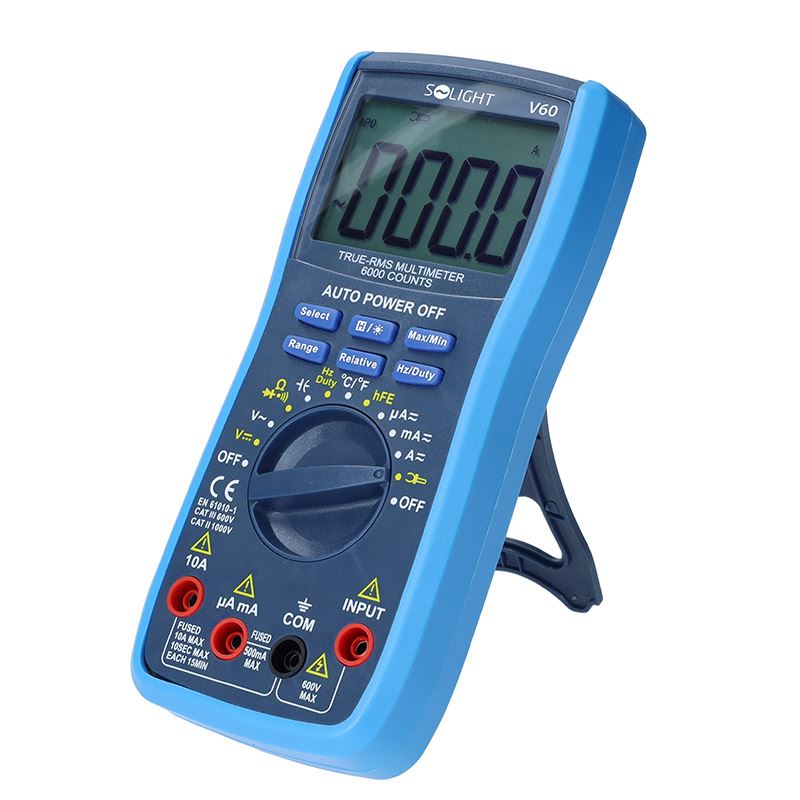

Professional Multimeter
Digital multimeter with a backlit LCD display (64 × 42 mm) and a maximum display of 6000 counts. Features HOLD function to retain values, relative measurement (REL Mode), and MAX/MIN function for recording extreme values. Diode test, hFE transistor test, continuity test with buzzer. Automatic polarity detection, dangerous voltage indication. Measures DC/AC voltage (600mV – 1000V), DC/AC current (600µA – 10A), resistance (600Ω – 60MΩ), capacitance (60nF – 60mF), temperature (-40°C – 1000°C), frequency (10Hz – 10MHz). Overload and high voltage protection (1000V DC / 750V AC). Power supply: 9V battery (6F22). Dimensions: 190 × 90 × 35 mm, weight: 357 g.

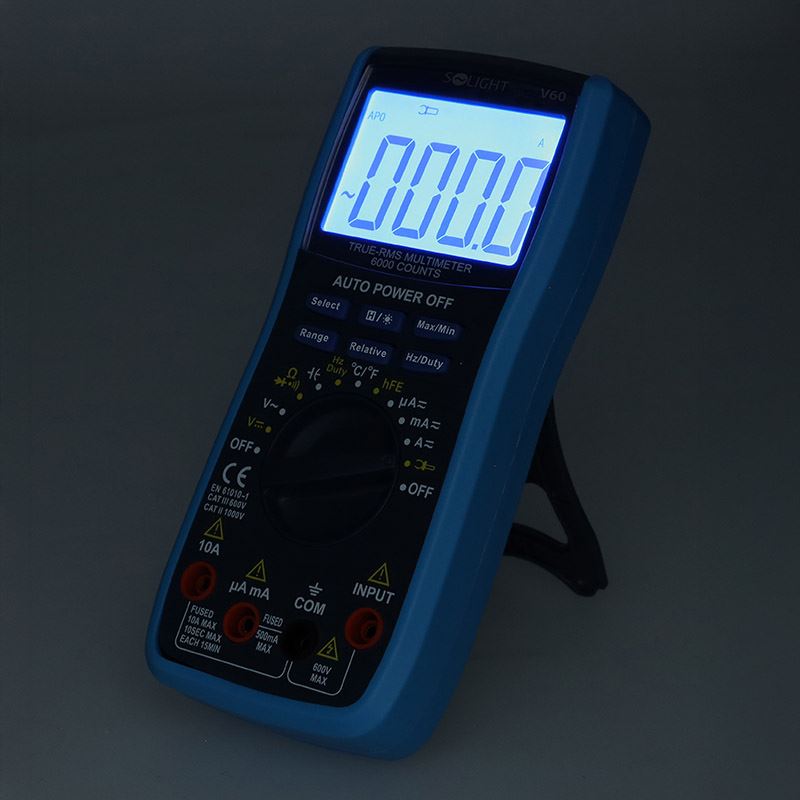

• backlit LCD display (64 × 42 mm)
• automatic shut-off after 15 minutes of inactivity
• maximum display count: 6000
• data hold function (retains measured value)
• relative measurement (REL mode)
• MAX/MIN function (records maximum and minimum values)
• manual and automatic measurement range

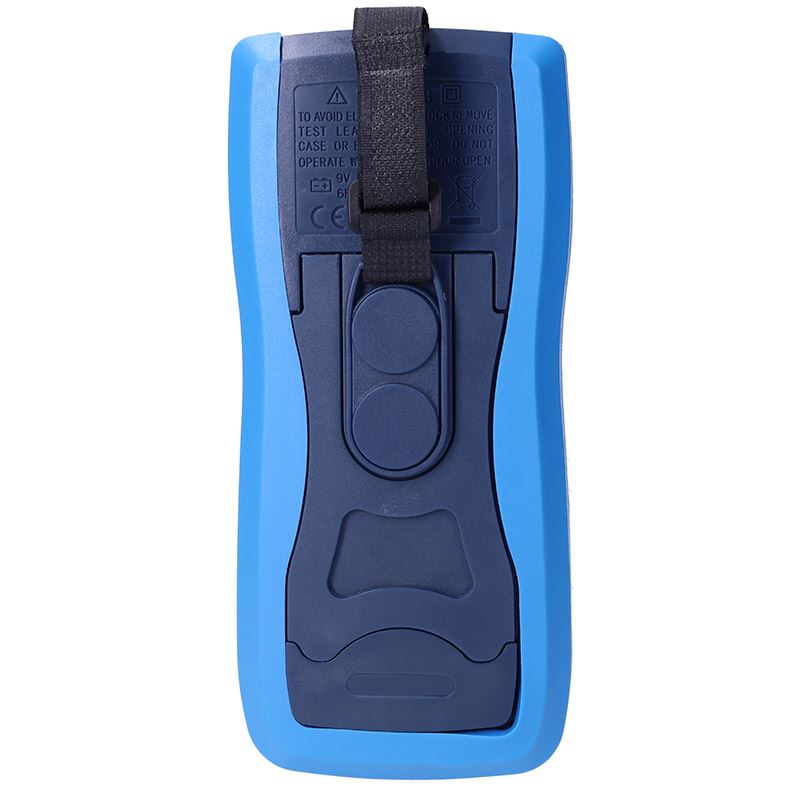

• option to hang using magnetic holder
• automatic polarity detection
• hazardous voltage indication
• continuity test – buzzer
• diode test (measures forward voltage drop)
• transistor hFE test (measures gain of PNP/NPN transistors)
• DC voltage: 600 mV - 1000 V (±0.8% + 3 digits to ±1.0% + 5 digits)
• AC voltage (True-RMS): 600 mV - 750 V (±1.2% + 6 digits to ±1.2% + 8 digits)
• DC current: 600 µA - 10 A (±0.8% + 5 digits to ±1.5% + 3 digits)
• AC current (True-RMS): 600 µA - 10 A (±1.5% + 8 digits to ±2.0% + 10 digits)
• resistance: 600 Ω - 60 MΩ (±1.5% + 3 digits to ±1.5% + 5 digits)
• capacitance: 60 nF - 60 mF (±8.0% + 5 digits)
• frequency: 10 Hz - 10 MHz (±1.0% + 5 digits)
• temperature: −40 °C - 1000 °C
• low battery indication: warning icon on display
• fuse replacement without removing from case
• input protection by fuses: mA: F0.5 A/600 V
• input protection by fuses: 10 A: F10 A/600 V
• overvoltage protection: maximum voltage 1000 V DC
• overvoltage protection: maximum voltage 750 V AC
• package contents: test leads
• package contents: K-type thermocouple
• package contents: multifunction socket for transistor testing
• package contents: user manual
• battery type: 9 V 6F22
• dimensions (H × W × D): 190 × 90 × 35 mm
• weight: approximately 357 g
• standard EN 61010 (CAT III 600 V, CAT II 1000 V)
• operating temperature: 0 °C - 40 °C (< 80% RH)
• storage temperature: −10 °C - 50 °C (< 85% RH)
