Elegant power and connectivity solution

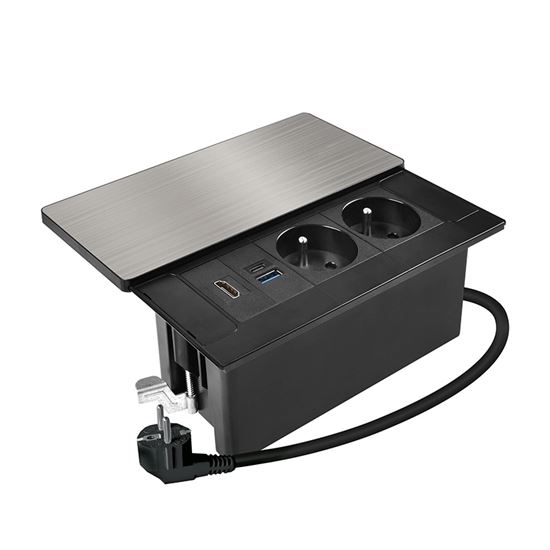

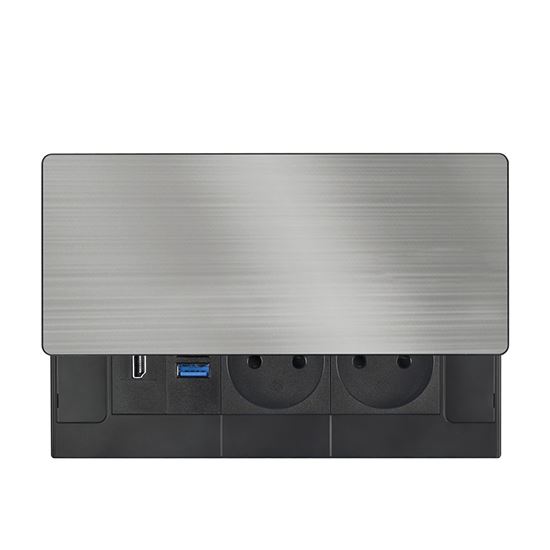

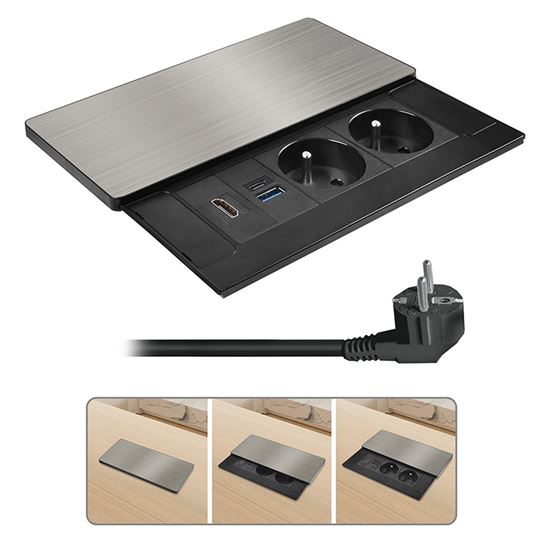

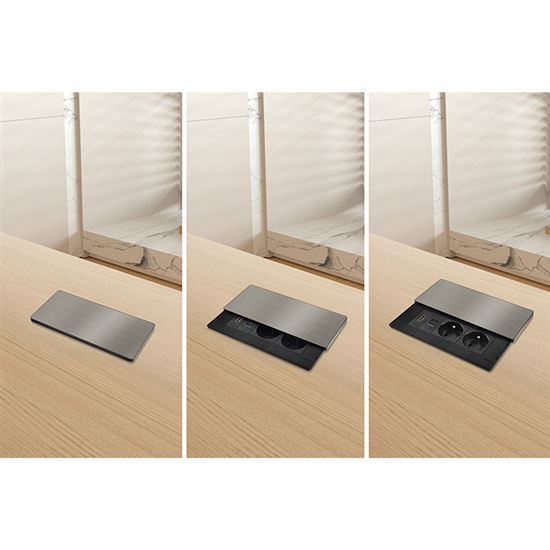

This built-in socket block offers more than just power – it combines two 230 V power outlets, a USB fast charger, and an HDMI port in one compact module. The top cover made of matte dark stainless steel (inox) with a sliding mechanism easily integrates into modern interiors of work desks, presentation areas, and living rooms. Thanks to the 2-meter cable, installation is flexible and convenient.
Modern USB fast charging

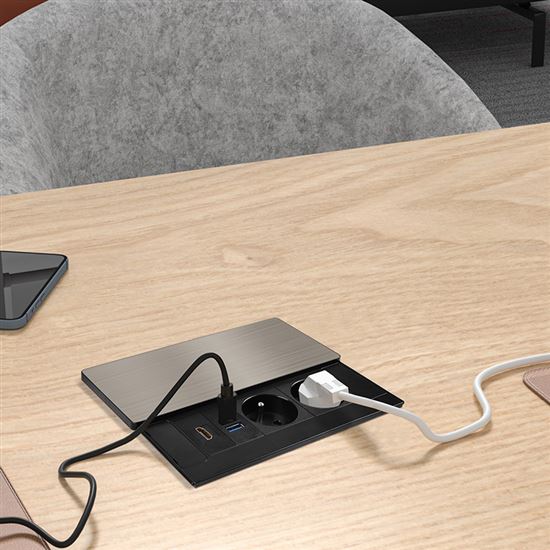

The USB-C port with Power Delivery (PD) technology and USB-A with Quick Charge 3.0 minimize charging time for mobile devices. When both USB ports are used simultaneously, the power is intelligently distributed according to the needs of each device. Ideal for workplaces with frequent charging needs for laptops, phones, tablets, wearable electronics, etc.
HDMI for presentations and home entertainment

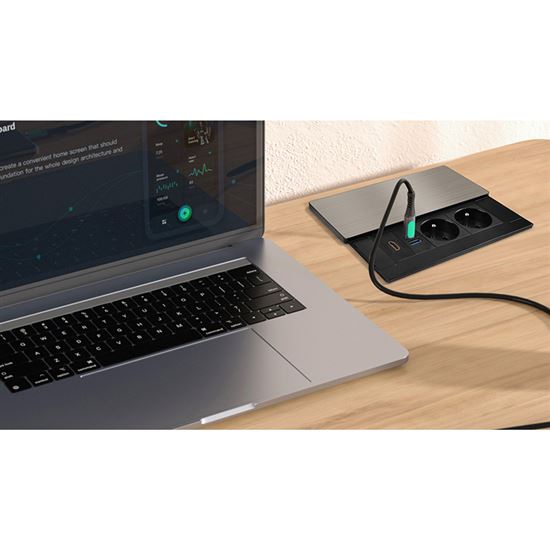

The built-in HDMI 2.0 port is ideal for conference rooms, meeting halls, and home use – for example, connecting a laptop to a TV or projector without unnecessary cabling. Everything elegantly in one place.
Option for data communication
The socket block is also ready for future expansion. Instead of one power outlet, up to two RJ45 data sockets can be easily installed, expanding the module’s function to include network connectivity. This is especially appreciated in office, presentation, as well as operational and production spaces where a combination of power and fixed ethernet connection is needed.
Safety and easy installation
Designed for loads up to 3680 W, i.e., 16 A at 230 V ~. Installation is simple – the module is inserted into a 164 × 62 mm opening and fixed with clamping screws. Thanks to the angled plug, the cable can be easily connected even behind furniture. The sockets are equipped with children protection and the construction of the entire module is intended for safe indoor use. An ideal solution for everyday use at home and at work.

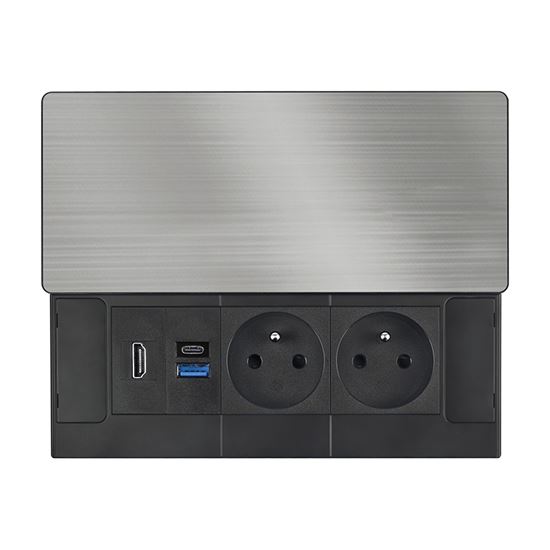

- 2 sockets 230 V~/16 A, max. 3680 W, children protection safety shutters
- HDMI 2.0 port, 4K x 2K/60 Hz, 18 Gbps, input-output connectors
- USB fast charger, max. 20 W PD
- USB-C PD: 5.0 V/3.0 A, 9.0 V/2.22 A, 12.0 V/1.67 A, 20 W Power Delivery
- USB-A QC 3.0: 5.0 V/3.0 A, 9.0 V/2.0 A, 12.0 V/1.5 A, 18 W
- when charging USB A+C simultaneously: max. 5.0 V/3.4 A, max. 17 W
- possible to install 1–2 RJ45 modules by replacing 1x 230 V~/16 A socket
- PVC cable 2 m, 3 x 1.5 mm², angled plug

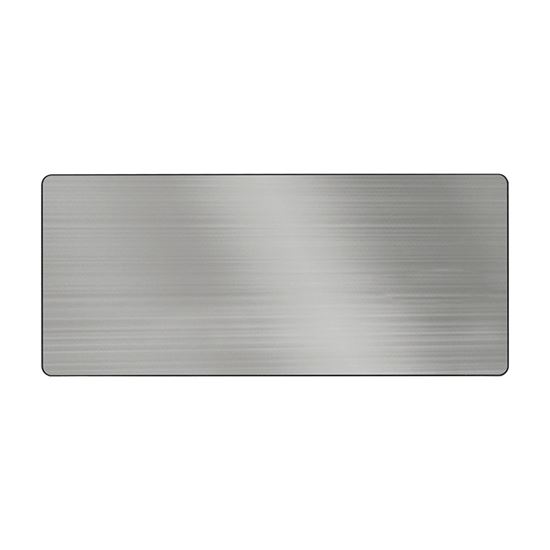

- material and color of top cover: dark matte stainless steel (inox)
- cut-out size in tabletop: 164 x 62 mm
