Professional 230 V~/16 A sockets with IP66 protection

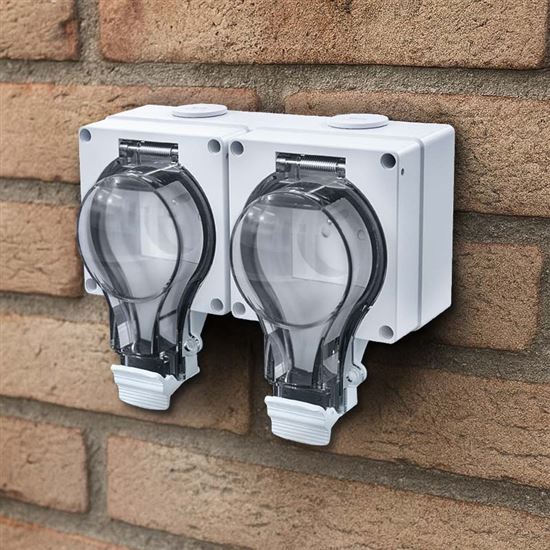

The outdoor double socket with IP66 rating offers maximum safety in demanding conditions. It is fully protected against dust, water jets from all directions, and electric shock injuries when in contact with tools or wires larger than 1 mm. Thanks to this high level of protection, it is ideal for use in industrial and domestic environments, even in humid or dusty conditions.
Easy installation and flexible use
Separate transparent covers for both sockets allow independent handling and inspection of connected cables. Wall mounting of the socket is easy thanks to the included accessories, including mounting screws, wall plugs, brackets, and waterproof plugs. The rear box can be attached using two methods, allowing adaptation to different needs.
Durable construction and safety

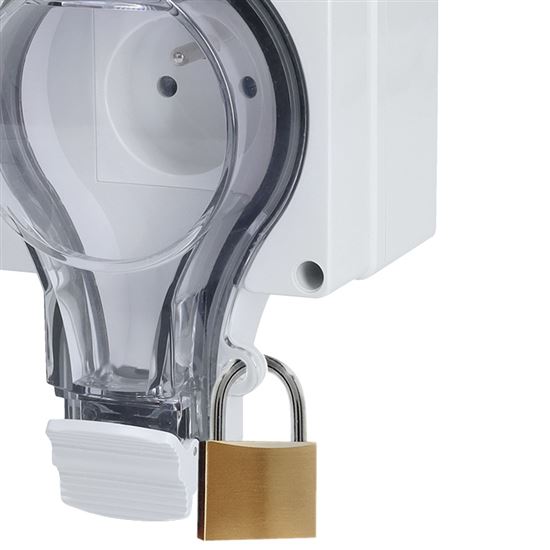

The socket covers can be individually locked with a padlock, protecting against unwanted handling and increasing safety. The extended cover protects part of the cable and also serves as a lever for easier closing of the lid. Rubber seals and plugs ensure perfect sealing against water and dust. Heat resistance of 850 °C allows installation even on flammable materials. The design is made to withstand intense climatic conditions, ensuring long-term reliability and safety in use.
Versatile use
Designed for a maximum load of 16 A, 3680 W at 230 V~. Three cable entries 2x M20 and 1x M25 allow connection of wires up to 3x 2.5 mm2, or interconnection with other sockets or electrical installations. Thanks to its robust construction and ease of use, the socket is suitable for construction, industrial operations, agriculture, as well as demanding home and garden projects. It can be safely used in operating temperatures from -20 °C to +60 °C.
Long lifespan and reliability
High-quality materials and precise workmanship ensure a long lifespan of the device. Follow the installation and usage instructions to ensure maximum safety and functionality.
- socket 2x 16 A, max. 3680 W, screw terminals
- 100% protected against dust
- protected against powerful water jets from all angles
- individually lockable top covers that protect against unauthorized handling or damage
- screw entry 1x M25x1.5, including waterproof screw plug
- screw entries/outputs 2x M20x1.5, including waterproof screw plugs, for connection with other sockets or other electrical installations
- mounting accessories included (screws, wall plugs, waterproof plugs, mounting brackets)
- it is necessary to purchase a waterproof cable gland M20 or M25 as needed, or a padlock
- tested for heat resistance at 850 °C. The product can be installed on flammable materials and does not need to be insulated with an additional base
