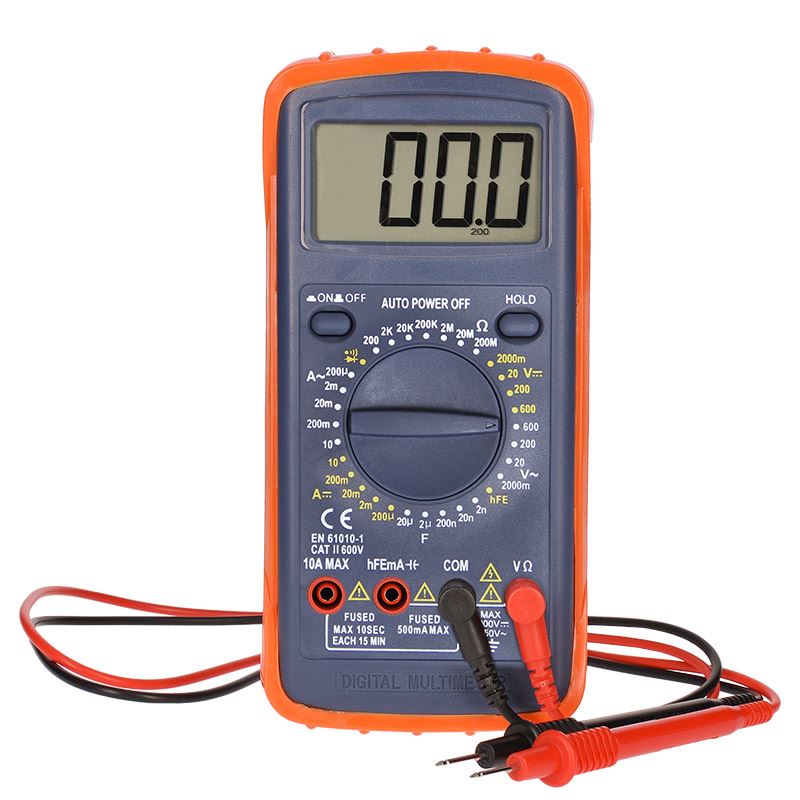

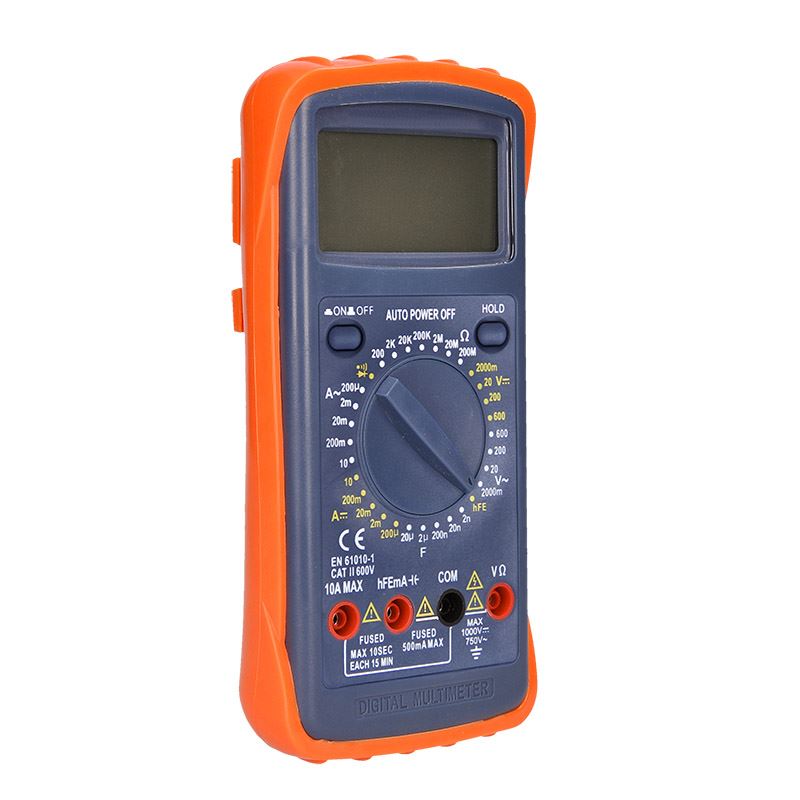

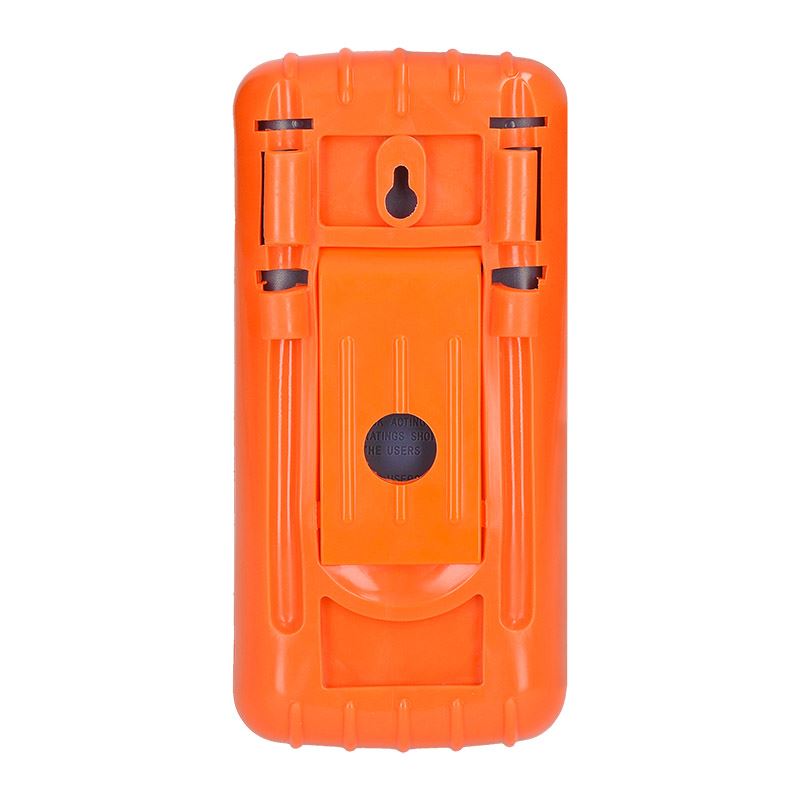

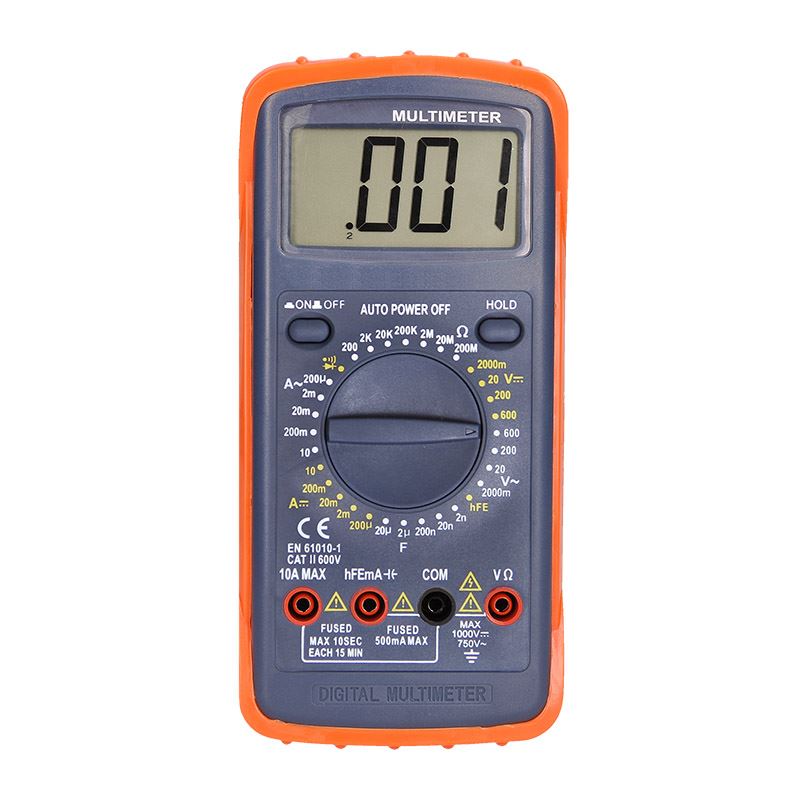

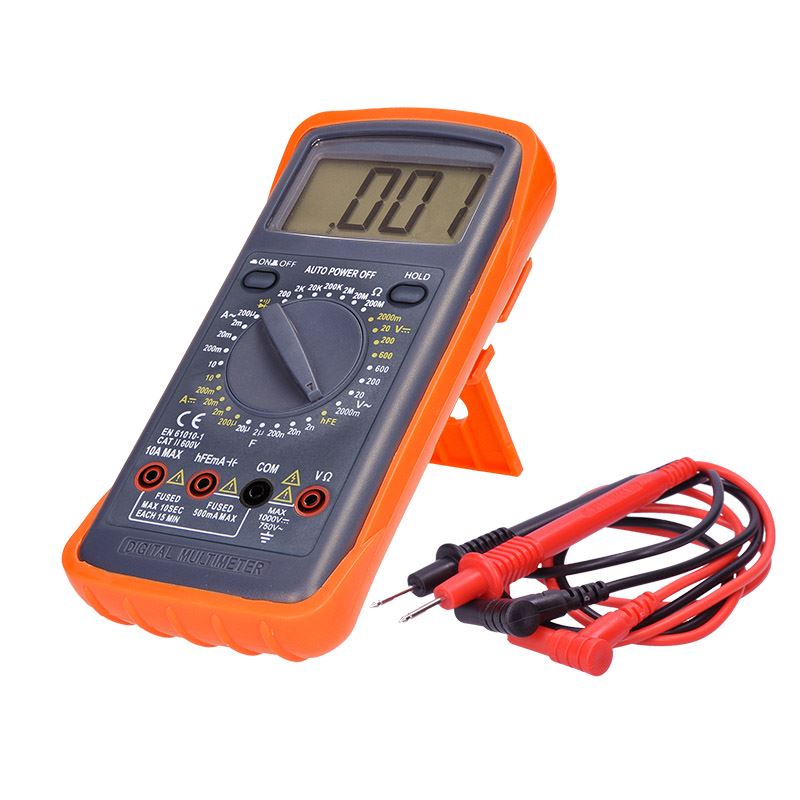

Solight multimeter

Product code: V30
  • EAN: 8592718027179
  • Solight multimeter
  • Solight multimeter
  • Solight multimeter
  • Solight multimeter
  • Solight multimeter
  • measurement of current, voltage, resistance, capacity
  • circuit continuity test, diode test
  • measurement of hFE parameters (0 - 1000, Ib = 10uA)
  • automatic shutdown
  • storage of the last measured value
  • low battery indication
  • overload protection
  • ranges:
  • DC voltage: 200mV - 600V (± 0.5%)
  • AC voltage: 200mV - 600V (± 1%)
  • DC current: 20uA - 10A (± 1.8%)
  • AC current: 20uA - 10A (± 2%)
  • resistance: 200? - 200M? (± 1%)
  • capacitance: 2nF - 20uF (± 4%)
  • operating temperature: 0 - 40 ° C
  • power supply: 9V battery (not included)
  • dimensions: 185x89x37mm
  • weight: 369g
ResistanceYes
Alternating currentYes
Alternating voltageYes
DC voltageYes
Direct currentYes
CapacityYes
FrequencyNo
Circuit continuity testYes
TemperatureNo
hFEYes
RMSNo
AC range20 uA-10 A
DC current range20 uA-10 A
AC voltage range2 V-600 V
DC voltage range200 mV-600 V
Resistance range200 Ohm-20 MOhm
Capacity range2 nF-20 uF
